Choosing the China best PCB manufacturing and assembly company requires more than comparing factory prices. A reliable supplier must prove process control, engineering depth, material traceability, and delivery performance. The right partner should also understand your product’s real operating conditions, from a crowded automotive control cabinet to a compact medical sensor.
Market demand supports careful evaluation. The World Semiconductor Trade Statistics forecast global semiconductor sales of approximately US$697 billion in 2025, following strong growth in 2024. Rising chip demand creates pressure on PCB suppliers to improve capacity, sourcing, and production scheduling. Meanwhile, IPC’s PCB industry research continues to emphasize supply-chain resilience, quality systems, and regional manufacturing capability. These reports do not identify one universal winner. They show why supplier selection needs evidence.
Look closely at the factory floor. Can the company provide impedance test records, AOI images, solder-paste inspection data, and batch-level traceability? Does its assembly line support fine-pitch BGA packages, lead-free reflow, and low-volume prototypes? Certifications such as ISO 9001, IATF 16949, or ISO 13485 may support credibility, but certificates alone cannot guarantee daily performance. That is an important limitation.
Experience matters.
A practical comparison should examine engineering response time, DFM feedback, component authenticity controls, yield data, and corrective-action discipline. IPC standards can guide technical discussions, while independent audits and customer references provide stronger evidence. The best company may not be the cheapest or largest. It is the supplier that consistently converts design files into tested, traceable, and commercially dependable products. No ranking is perfect, but transparent evidence makes the decision defensible.
The label “best” depends on product risk, not factory size or location. IPC Class 2 suits most commercial electronics, including control panels and office equipment. Class 3 targets high-reliability products where one failure can create serious consequences. It demands tighter process control, stronger documentation, and more consistent inspection.
A capable manufacturer should explain these differences clearly. Ask for current IPC certificates, process records, and traceability examples. Review annular ring measurements, plated-hole quality, solderability, and laminate control. For assembly, check compliance with IPC-A-610 and J-STD-001 requirements. AOI, X-ray inspection, and microsection analysis can reveal hidden defects. A supplier may advertise Class 3 capability yet lack stable production evidence. That gap matters. I would not judge quality from a polished website alone.
Tips: Match the IPC class to your product’s real risk. Request sample inspection reports before placing a large order. Confirm whether Class 3 applies to fabrication, assembly, or both. Ask how nonconforming boards are isolated and corrected. During a factory audit, inspect storage conditions, humidity records, and operator training. Small details often expose larger weaknesses. Allow room for doubt; even a strong process can fail without disciplined follow-up.

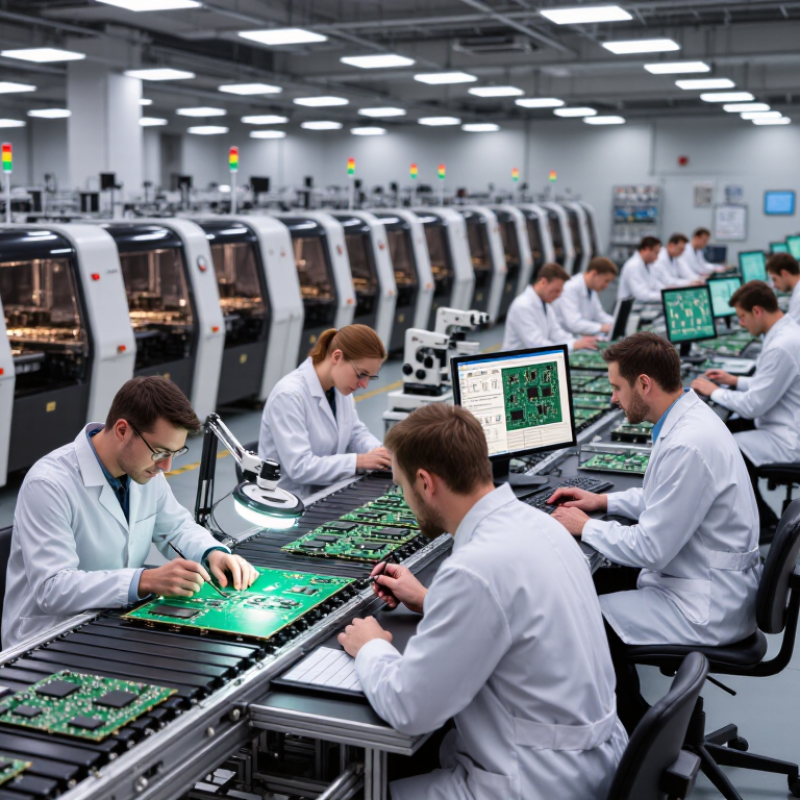

China Best PCB Manufacturing and Assembly Company?
Comparing PCB capabilities means looking beyond a factory’s advertised layer count. A supplier may support one to 40 layers, yet each range can require different materials, registration controls, and inspection methods. For fine-pitch designs, 3–6 mil trace and space demands stable imaging, controlled etching, and careful impedance verification. Ask for cross-section reports, test coupons, and recent yield data. Real production evidence matters more than a capability chart.
Tips: Confirm whether 3 mil applies to inner layers, outer layers, or both. Check finished copper thickness, minimum drill size, stackup tolerance, and solder mask registration. Request sample panels with microscopic images. A four-mil target is not automatically better; it may reduce process margin and increase cost. In assembly, verify stencil control, component placement accuracy, and inspection coverage. Small pads can expose weak process discipline quickly.
Experience also shows that high layer counts create practical trade-offs. A 40-layer board may need sequential lamination, tighter dielectric control, and longer fabrication time. A simpler eight-layer board can still fail if its impedance is poorly managed. I would review thermal requirements, via structures, and manufacturing notes before choosing a supplier. Some specifications remain unclear until the first pilot run. That is worth admitting. Reliable partners explain limits plainly, provide traceable records, and adjust the process when measured results disagree with the drawing.
| Capability Tier | Typical Layer Range | Practical Minimum Trace / Space | Common Board Construction | Via Technology Typically Used | Manufacturing Complexity | Typical Applications | Assembly Considerations |
|---|---|---|---|---|---|---|---|
| Entry-Level Rigid PCB | 1–2 layers | 6 / 6 mil | FR-4 laminate, through-hole or basic plated-through construction | Through-hole vias | Low; suitable for larger pads, relaxed routing, and standard copper weights | Simple controls, power boards, LED products, sensors, and basic consumer electronics | Compatible with conventional SMT and through-hole assembly; larger component pitches simplify inspection and rework |
| Standard Multilayer PCB | 4 layers | 6 / 6 mil | Signal–ground–power–signal or similar balanced FR-4 stackup | Through-hole vias; some via-in-pad designs may be possible by agreement | Low to moderate; layer registration and impedance control become more important | Industrial controllers, networking equipment, office electronics, and embedded systems | Standard automated SMT assembly; controlled impedance should be confirmed before layout release |
| Fine-Line Multilayer PCB | 6–8 layers | 5 / 5 mil | Balanced multilayer FR-4 with dedicated reference planes and routed signal layers | Through-hole vias and selected blind or buried vias | Moderate; requires tighter registration, etching, plating, and dielectric-thickness control | High-speed digital products, communication modules, medical electronics, and compact industrial equipment | Suitable for fine-pitch SMT and many BGA packages when solder-mask registration and pad design are controlled |
| High-Density Multilayer PCB | 10–12 layers | 4 / 4 mil | High-density FR-4 or low-loss laminate with multiple reference planes | Blind vias, buried vias, and selected microvias | Moderate to high; stackup simulation, impedance coupons, and sequential lamination may be required | Servers, advanced communication hardware, test instruments, and high-speed computing systems | Supports fine-pitch BGA and dense SMT placement; thermal profiling and X-ray inspection are commonly important |
| Advanced HDI PCB | 14–20 layers | 3–4 / 3–4 mil | High-density interconnect stackup with thin dielectric layers and controlled impedance structures | Laser microvias, stacked or staggered microvias, plus buried and through vias | High; requires precise laser drilling, sequential buildup, registration control, and reliability testing | Compact computing devices, advanced networking, aerospace electronics, and high-performance instrumentation | Fine-pitch packages require accurate solder-mask definition, paste control, SPI, AOI, and often X-ray inspection |
| Complex High-Layer PCB | 22–30 layers | 3 / 3 mil | Complex multilayer construction using low-loss or high-Tg materials where electrical or thermal requirements demand them | Mixed through vias, buried vias, blind vias, and microvias | Very high; lamination cycles, warpage, resin fill, registration, and yield require close process control | Data infrastructure, advanced radar and communication systems, medical imaging, and mission-critical electronics | Assembly requires tight component placement accuracy, board-flatness control, thermal management, and comprehensive inspection records |
| Ultra-High-Layer PCB | 32–40 layers | 3 / 3 mil Design-dependent |
Very thick multilayer stackup with carefully balanced copper distribution and specialized dielectric selection | Through vias combined with buried, blind, or microvia structures as required by the design | Very high; requires detailed manufacturability review, controlled lamination, warpage management, and electrical verification | Large-scale networking, computing infrastructure, defense electronics, and complex test or control platforms | Requires advanced DFM/DFA review, controlled reflow, detailed solder-joint inspection, and strict traceability |
| Precision Fine-Line Benchmark | Any layer count within 1–40 layers | 6 / 6 mil | Conventional manufacturing target for many standard rigid multilayer designs | Primarily through-hole vias; other structures depend on the stackup | Generally achievable with standard engineering controls, subject to copper thickness and board geometry | General industrial, consumer, automotive-support, and embedded electronics | Usually compatible with mainstream SMT assembly and standard automated optical inspection |
| Precision Fine-Line Benchmark | Any layer count within 1–40 layers | 5 / 5 mil | Fine-line multilayer construction with tighter etching and registration requirements | Through vias plus optional blind or buried vias | Moderate; copper thickness, line length, impedance, and solder-mask clearance affect yield | Compact electronics, high-speed interfaces, and space-constrained products | Fine-pitch placement and solder-mask registration should be validated using the final component library |
| Precision Fine-Line Benchmark | Any layer count within 1–40 layers | 4 / 4 mil | High-density multilayer or HDI construction with controlled dielectric geometry | Blind vias, buried vias, and microvias may be required | High; electrical testing, impedance validation, and cross-section verification are recommended | High-speed digital, RF-support, communications, and advanced instrumentation | Fine-pitch BGA, QFN, and small passive components typically require tightly controlled stencil and reflow profiles |
| Precision Fine-Line Benchmark | Any layer count within 1–40 layers | 3 / 3 mil | Advanced HDI or highly controlled multilayer construction | Laser microvias and sequential buildup are commonly considered for dense routing | Advanced; not a universal production rule and must be confirmed against the complete fabrication drawing | Miniaturized high-density systems, advanced computing, communications, and specialized electronics | Requires detailed DFA review, paste-deposition control, high-accuracy placement, and enhanced inspection coverage |
Note: Trace and space values are practical design benchmarks rather than universal production guarantees. Final capability depends on copper thickness, finished board thickness, laminate type, impedance requirements, aspect ratio, via structure, panel utilization, board size, surface finish, and the manufacturer’s process controls. A fabrication capability review and DFM check should be completed before production release.
Choosing the best PCB manufacturing and assembly company requires measurable inspection evidence, not attractive claims. AOI checks solder bridges, missing parts, polarity, and placement errors after reflow. It cannot reliably see hidden BGA joints or bottom-terminated components. X-ray inspection fills that gap by examining voids, opens, and insufficient solder beneath packages. IPC’s 2023 Technology Roadmap highlights rising assembly density and tighter component pitches, making this layered inspection increasingly important.
A claimed 99% first-pass yield sounds strong, but the calculation needs context. On 10,000 boards, 99% FPY still leaves 100 boards needing repair, review, or scrap. IPC’s 2024 Global Sentiment of the Electronics Industry report identifies quality performance and manufacturing efficiency as continuing industry priorities. Ask for defect-per-million opportunities, not FPY alone. Also request AOI false-call rates, X-ray sampling rules, calibration records, and traceable images. Small details matter.
Experience exposes the weak point. AOI may pass a board with marginal solder hidden under a package. X-ray may reveal the void, yet operators can misread its production impact. IPC-A-610 acceptance criteria help standardize decisions, but they do not replace process capability studies. A capable supplier connects inspection results with stencil control, paste management, reflow profiling, and corrective action. Perfect numbers deserve questions. Are repaired boards counted as first-pass units? Are customer-specific requirements included? Without these answers, 99% FPY remains a promising figure, not reliable proof.
Compliance is measurable, not a marketing phrase. ISO Survey 2022 recorded 1,265,216 ISO 9001 certificates across 189 countries and economies. A serious PCB supplier should show a current certificate, defined process controls, and traceable corrective actions. Ask for the certificate scope. It must include PCB manufacturing or assembly, not only office administration.
UL recognition supports safer material and flammability control. RoHS documentation should identify restricted substances through supplier declarations, material records, and laboratory evidence. Request lot-level traceability, solderability records, and inspection data. A 1,000-hour test can reveal thermal cycling, insulation weakness, or plating defects. However, duration alone proves little. Test voltage, temperature, humidity, sample size, and failure criteria must be documented. IPC reliability guidance also emphasizes controlled test conditions and repeatable acceptance limits.
Tips: Visit the production floor, if possible. Compare certificates with the actual factory address. Request anonymized test reports and a sample certificate of analysis. Check whether serial numbers connect materials, operators, machines, and inspection results. Do not accept “RoHS compliant” as complete evidence. I have seen impressive reports hide weak sampling plans. That deserves a second review. A supplier may also pass 1,000 hours while missing assembly workmanship requirements. Compliance is strongest when independent testing, internal records, and customer audits tell the same story.
China Best PCB Manufacturing and Assembly Company?
For prototypes, delivery speed is rarely just a factory decision. A 24–72-hour promise usually covers bare-board fabrication, not full assembly, component sourcing, and testing. A 2024 Prismark PCB Industry Forecast valued the global PCB market at approximately US$74 billion, with demand still rising for HDI and multilayer boards. That pressure rewards flexible production, but it also creates rushed quotations. Speed is conditional. Layer count, board size, impedance control, surface finish, and drilling requirements can extend production time. I would request a written process schedule, not only a delivery date.
Cost changes sharply with quantity. A prototype may carry engineering, tooling, and setup charges across five or ten boards. At 1,000 pieces, those costs spread across every unit. IPC’s 2024 North American PCB Statistical Program reported continuing weakness in orders and uneven demand, which makes volume pricing more negotiable but less predictable. Material selection matters too. High-Tg laminates, thicker copper, blind vias, and tight tolerances can add meaningful cost. Ask for separate pricing at 10, 100, and 1,000 units. Include inspection, electrical testing, packaging, and freight. Otherwise, the “lowest” quote may be incomplete. Not always. A fast prototype can expose design errors before mass production, yet a rushed review may miss solder-mask clearance or connector fit. That risk deserves a small engineering fee and careful human checking.
