Flexible Circuit board

Flex Turnkey PCB Assembly

The design rules for flex turnkey PCB assembly is very similar to the design rules for traditional PCBs.  Traditional PCBs and flex flex turnkey PCB assembly share some similarities in the manufacturing process as well.  To start, the flexible circuit board material (typically copper clad Polyimide) is chosen, drilled, plated, photo-imaged, and imprinted just like the conservative PCB process. Next, both PCBs and flex turnkey PCB assemblies involve the panels being baked to remove any moisture from the wet processes.  This next step is where the original PCB and flex turnkey PCB assembly start to differ.  Flex turnkey PCB assemblies go to the cover lay station instead of going to the fuse mask station, as would occur with traditional PCBs.

A flex circuit board cover lay, also known as a cover film, is a lamination process used to summarize and protect any peripheral circuitry of the flex circuit. The cover lay serves the similar function as the solder mask does for conventional PCBs with the dissimilarity being the added component of flexibility. Naturally, the thickness of the cover lay is prepared of 1 mil thick Polyimide with a 1 mil thick, attach adhesive, but other thicknesses are accessible to meet precise design necessities. The Polyimide and adhesive cover lay is laminated using force and heat.

Flexible circuitThe heat allows for simple flow of the adhesive which is needed because it must fill-in any and all gaps among the traces and pads to stop the trapping of air between layers. To a flex turnkey PCB assembly designer this means the cover lay openings for a characteristic 1 oz. The copper plan must be out-sized by 10 mils, which is appreciably bigger than the typical huge of 2-3 mils used on conventional PCB solder masks.

ACME PCB Assembly manufactures flexible turnkey PCB assembly.  We can take your flexible circuit application from concept to reality with our complete design capabilities.  Our talented team is equipped to work in multiple data formats. We have in-house surface-mount technology (SMT) capabilities  and specialize in turnkey assembly applications.

ACME PCB Assembly will work with you for all of your flexible circuit board needs. We are committed to not only customer satisfaction, but exceeding our customer’s expectations. Our adherence to quality standards is a part of what makes our boards superior to other suppliers.

We provide a complete suite of PCB Assembly Services, including rework and modification, BGA, SMT, Turnkey, Thru-Hole, Lead Free, and Prototype assembly, plus an extensive line of add-on services, such as Injection Molding and Metal Work & Finishing.

Call us today with any questions 1- 310-715-1898  (Sales Extension 210) (Purchasing Extension 160)



Printed Circuit Board Fabrication

Top Benefits of Using High-Quality PCBs in Your Projects

In today’s fast-paced technology landscape, using high-quality PCBs in your projects is essential for success. Printed circuit boards form the backbone of countless devices, from smartphones to industrial machines, and their performance can make or break your innovation. Ensuring that the printed circuit boards you select meet rigorous standards and are produced under stringent quality control measures is key to delivering reliable, durable, and efficient products.

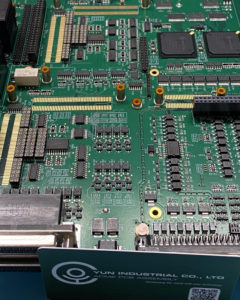

Printed Circuit Board FabricationWhen working on any tech-driven project, it’s crucial to focus on the longevity and performance of your components. High-quality PCBs offer enhanced reliability, reducing the likelihood of malfunction or failure in the field. This is especially important in industries where downtime can result in costly delays or safety hazards. By sourcing printed circuit boards from a trusted provider like Board Assembly, you ensure that each PCB is meticulously inspected and tested, guaranteeing that it can withstand even the most challenging environments.

Another critical advantage of using high-quality PCBs is their ability to handle complex circuitry while maintaining efficiency. Whether your project involves compact devices or large-scale applications, well-designed printed circuit boards allow for optimal layout, minimizing noise and interference while maximizing performance. Quality control throughout the production process ensures that each board is built to precise specifications, eliminating errors and inconsistencies that could otherwise impact functionality.

Beyond functionality, investing in high-quality PCBs also enhances the overall reputation of your product. By delivering a reliable, robust solution to your customers, you establish trust and credibility, setting your business apart from competitors who may cut corners by using inferior components. The importance of partnering with a company like Board Assembly that prioritizes quality control cannot be overstated.

In conclusion, using high-quality PCBs in your projects isn’t just a technical requirement—it’s a strategic move to ensure long-term success and market differentiation. If you’re looking to integrate printed circuit boards that are built to last, perform reliably, and meet the highest standards, visit Board Assembly today to explore how their expertise and commitment to excellence can elevate your next project.

Cable Harness Assembly

ACME PCB Assembly Offers Cable Harness Services

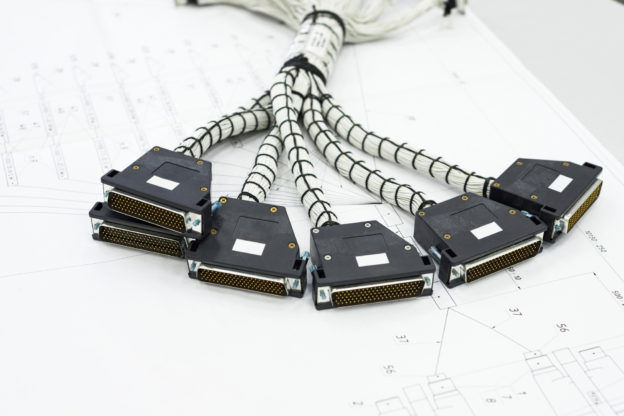

Cable Assemblies include one or more wires that run together in a single sleeve with a connector or plug on each end.  Cable assemblies could be groups of wires or cables bundled together.  They are wrapped in a thermoplastic or vinyl sleeve, cable assemblies are ideal for directing groups of wires and cables around obstacles.

Cable assemblies are designed to perform specific functions that is determined by the plugs, terminals, and connectors that are found on each end.  They are used in most electronic applications, everything from flat panel displays to the automotive electronic system to integrated cockpit systems to simple LED lighted clothing, costumes and accessories.

What Do You Use Cable Assemblies For?

Cable assemblies intersect or interconnect different circuits or electrical paths, so they work together to transmit signals or power.  They usually only have two ends to connect point A to point B.

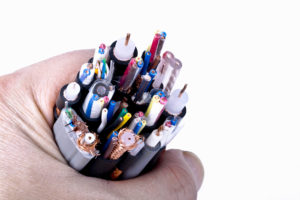

Ethernet Cable HarnessFor example, ethernet cable assemblies are designed to provide service supporting bandwidth speeds up to 10 Gigabit Ethernet, such as large data centers, military field units, and medical facilities.  For those applications that require a lightweight, smaller assembly that can transmit clearly and rapidly over great distances, support greater bandwidths, with high voltage isolation, then fiber optic cable assemblies would meet those needs.  A few of the industries that utilize fiber optic cable assemblies, include aerospace, automotive, industrial, medical, and military applications.

Cable harnesses are more complex in nature and may require different machinery and tools to be consistent with production. Creating slits and windows in cables demand specialized equipment to handle the various conductors within the insulation.  We

Located in Carson, California, ACME PCB Assembly utilizes top of the line technology from Schleuniger to perfectly cut, strip, and process any wire or cable you need. After 25 plus years in the business, ACME PCB Assembly has the experience to be your contract manufacturer for cable & wire harness projects. As an IPC-A-610 certified assembler with a certified trainer in house, you can be rest assured the cables and wires that come out of ACME will exceed the standards.

cable assemblies, cable harness assembly, cable harness service Los Angeles, cable harness

Is Through-Hole Assembly Still Important to Use?



Before the 1960s, the through-hole assembly process for mounting components onto printed circuit boards was the only game in town. It was labor-intensive and required a lot of space, but it was the only option. That all changed with the rise of surface mount technology (SMT), which allows for components to be mounted directly onto a printed circuit board’s surface. Since SMT doesn’t require drilling holes through a PCB, its components are much smaller and can be mounted on each side of the board. The result is a denser, smaller PCB that can perform much better than a PCB using through-hole technology.

When SMT came on the scene, many engineers believed it would harken the death of through-hole PCBs. However, while SMT does reign supreme, through-hole is still with us today. In very specific circumstances, through-hole PCBs are a better choice than their SMT counterparts.

A Few Important Uses for Through-Hole PCBs

Through-hole PCBs may be bigger and clunkier than SMT PCBs, but they do offer up one important advantage. Through-hole components are attached far more securely than SMT, which gives them a much stronger connection between layers. SMT connections are strong enough for the vast majority of products that people use in their day-to-day lives, but for machines that must operate in extreme environments, through-hole is the more reliable and stable option.

For example, through-hole PCBs can be commonly found in machines in the military and aerospace industries. Oftentimes, these machines must survive extreme temperatures, forceful collisions, and rapid accelerations. Through-hole is the ideal reliable and resilient mounting option for these types of products.

Prototypes

The other area where you are most likely to find through-hole mounting is in product prototypes. Through-hole is often preferred in prototyping, because it is much easier to adjust and replace components as the prototype undergoes testing and design alterations. If you are dreaming up an exciting new product, you’ll want to reach out to a printed circuit board vendor that is adept at through-hole mounting. This will give you more flexibility as you put the prototype through its paces.

Find Your SMT and Through-Hole Vendor

No matter what your industry or product line, it is smart to look for a printed circuit board manufacturer with both SMT and through-hole experience. This will allow you more choice and more control over your final product. At ACME PCB Assembly, we offer extensive experience in both SMT assembly and through-hole assembly.

Contact Us Today!

ROHS-Compliant Assembly Services USA

How Being RoHS-Compliant PCB Assembly Services are Different from Assembly Services?

With everyone’s increasing concerns on the over usage of hazardous materials in the electronic and electrical products and their environmental impact, there have been several stricter regulations being imposed by the leading governmental organizations across the world. The RoHS compliance is one of those important regulations that is currently being imposed on the utilization of hazardous materials in the electronics and electrical products. Are you interested in knowing how this compliance works or what the benefits are?

Being Able to Understand the Materials that are Restricted Under RoHS Compliance

The RoHS compliance has restricted the use of six materials in the PCBs and electronic items. They include Mercury (Hg), Lead (Pb), Cadmium (Cd), Hexavalent Chromium (CrVI), polybrominated diphenyl ethers (PBDE), Polybrominated biphenyls (PBB), and phthalates such as BBP, DEHP, BBP, and DIBP.

The compliance also specifies the maximum levels of these restricted materials in the PCBs and other electronics items.

  1. Mercury (Hg): < 100 ppm
  2. Lead (Pb): < 1000 ppm
  3. Cadmium (Cd): < 100 ppm
  4. Polybrominated Biphenyls (PBB): < 1000 ppm
  5. Hexavalent Chromium: (Cr VI) < 1000 ppm
  6. Polybrominated Diphenyl Ethers (PBDE): < 1000 ppm
  7. Bis(2-Ethylhexyl) phthalate (DEHP): < 1000 ppm
  8. Dibutyl phthalate (DBP): < 1000 ppm
  9. Diisobutyl phthalate (DIBP): < 1000 ppm
  10. Benzyl butyl phthalate (BBP): < 1000 ppm

The Many Features of RoHS-Compliant Assembly Services

Many PCB assembly services are utilizing processes and technologies that help them manufacture RoHS-compliant PCB assemblies. The following are a few features that help distinguish these services from others.

  • Lead-free Surface Finishes:Many manufacturers are nowadays using lead-free surface finishes such as lead-free HASL, ENIG, Electroplated Nickel and Soft (Bondable), Hard Gold Immersion Tin (White Tin), and Organic Solderability Preservatives (OSP).
  • RoHS Compliant Substrate Materials:The choice of RoHS material depends on the requirement of the application. There are materials such as Isola IS410, and Polyclad 370HR that assure standard electrical performance; however, materials such as Isola FR415 and Polyclad Getek assure high electrical performance at low loss.
  • Primary and Secondary Services:It has been observed that many RoHS PCB assembly service providers specialized in primary and secondary services such as lead trimming, lead-free wave soldering, and many more.

Some Benefits of Using RoHS-Compliant PCBs

The benefits that are offered by lead-free and RoHS-compliant PCBs are various. The following are a few of them:

  • Helps Reduce Metal Poisoning:As the technology landscape is fast evolving, many customers are discarding their obsolete electronic equipment in landfills. Equipped with various hazardous materials, this equipment helped lead to severe poisoning. Although recycling is being performed, still the equipment may have hazardous substances in them. The RoHS directive has forced OEMs reduce their dependence on hazardous substances. This has helped reduce the impact of these materials on the environment, and people working with them.
  • Improved Product Safety:With RoHS compliance being adopted by many prominent electronics manufacturers in EU and the US, now users can be assured that the product they are using is lead and mercury free. As a result, the sales and popularity of the products from these manufacturers has tremendously increased.
  • Improved Thermal Properties:It is proven that lead-free PCBs have excellent thermal properties than their leaded counterparts. They can easily withstand temperatures between -45°C to 145°C. Nowadays, PCB manufacturers are using specialized halogen-free laminates that have further helped improve their thermal stability up to 300 °C.

The benefits of RoHS-compliant PCBs symbolize a green future.  It is important that you find a trusted RoHS-compliant assembly services provider such as Yun Industrial and ACME PCB Assembly. Our company follows processes that are audited regularly and certified as chemical free.

Call today to find out more about our RoHS-compliant assembly services.
